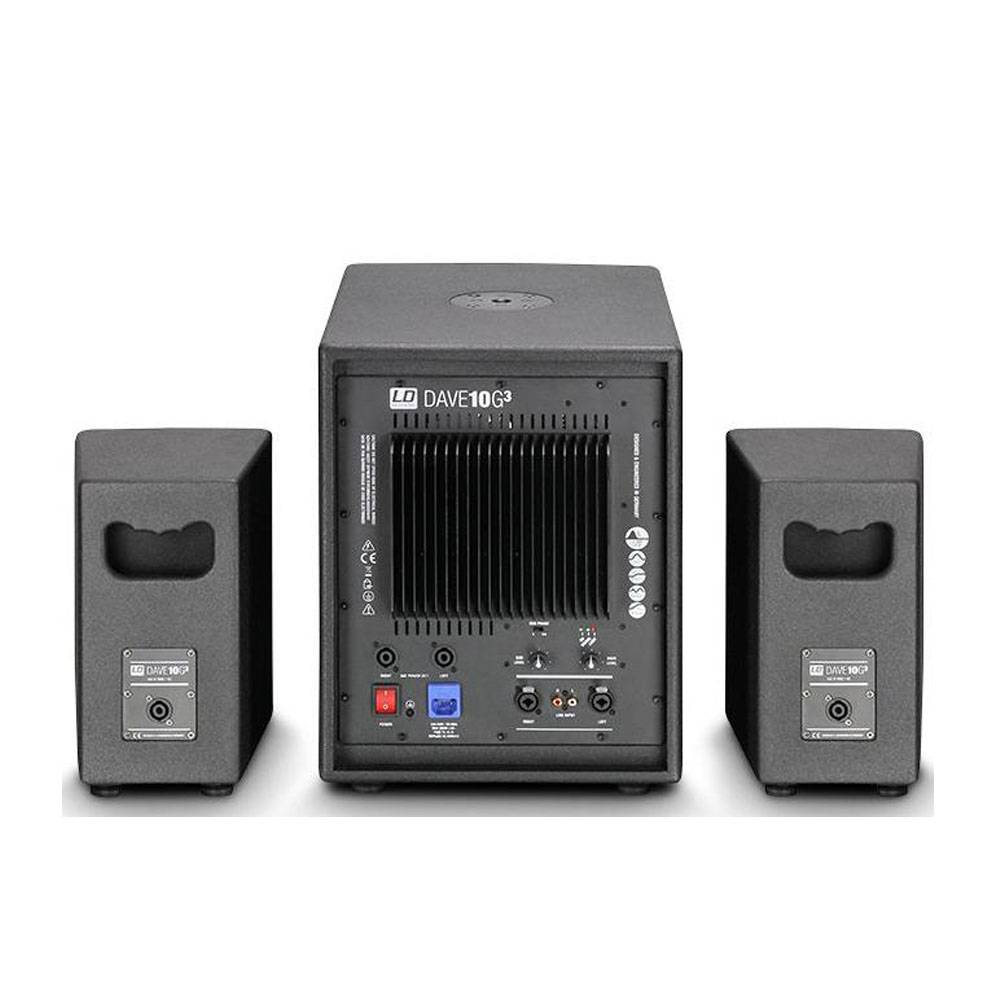

Hệ thống loa LD SYSTEM DAVE 10 G3 tích hợp DSP

Product number:

LDDAVE10G3

Product type:

PA Complete Systems

Colour:

Black

Max. SPL (continuous):

115dB

Max. SPL (peak):

126dB

Frequency response:

45 - 19000Hz

Dispersion (H x V):

70 x 70°

Weight:

21.583kg

Subwoofer

Low/mid driver dimensions:

10"

Woofer size:

254mm

Woofer magnet:

Ferrite

Woofer brand:

Custom-made

Woofer voice coil:

2"

Woofer voice coil (mm):

50.8mm

Cabinet construction:

vented

Cabinet material:

15 mm MDF

Cabinet surface:

texture paint

Subwoofer width:

345mm

Subwoofer height:

430mm

Subwoofer depth:

460mm

Subwoofer features:

threaded flange M20, LD Systems "Evolutive" handles

Mid/Hi System

Midrange size:

5.25"

Midrange size:

133.4mm

Midrange magnet:

Ferrite

Midrange brand:

Custom-made

Midrange voice coil:

1"

Midrange voice coil:

25.4mm

Horn:

radial

Tweeter dimensions:

1"

Tweeter dimensions (mm):

25.4mm

Tweeter magnet:

Neodymium

Tweeter brand:

Custom-made

Tweeter voice coil:

1"

Tweeter voice coil (mm):

25.4mm

Mid/Hi system impedance:

4Ohm(s)

Loudspeaker inputs:

1

Speaker input connections:

Speakon compatible

Cabinet construction mid/high:

Closed

Mid/Hi system cabinet material:

12 mm MDF

Mid/Hi system cabinet surface:

texture paint

Mid/Hi system width:

200mm

Mid/Hi system height:

300mm

Mid/Hi system depth:

230mm

Mid/Hi system features:

ergonomically shaped insert handles, Pole mount flange with 5° tilt

Amplifier module (integrated in subwoofer)

Amplifier:

Class A/B

Amplifier output system (RMS):

350W

Amplifier output system (peak):

1400W

Protection circuits:

short circuit, limiter, overload

Cooling:

Aluminium heat sink

Controls:

Power, Sub level, Subwoofer Phase Reverse, volume

Indicators:

Limit, Signal, Power

Operating voltage:

transformer, 220 V AC - 240 V AC

Power consumption:

600VA

Line inputs:

2

Line input connectors:

6.3 mm jack, XLR, RCA

Loudspeaker outputs:

2

Speaker output connections:

Speakon compatible
