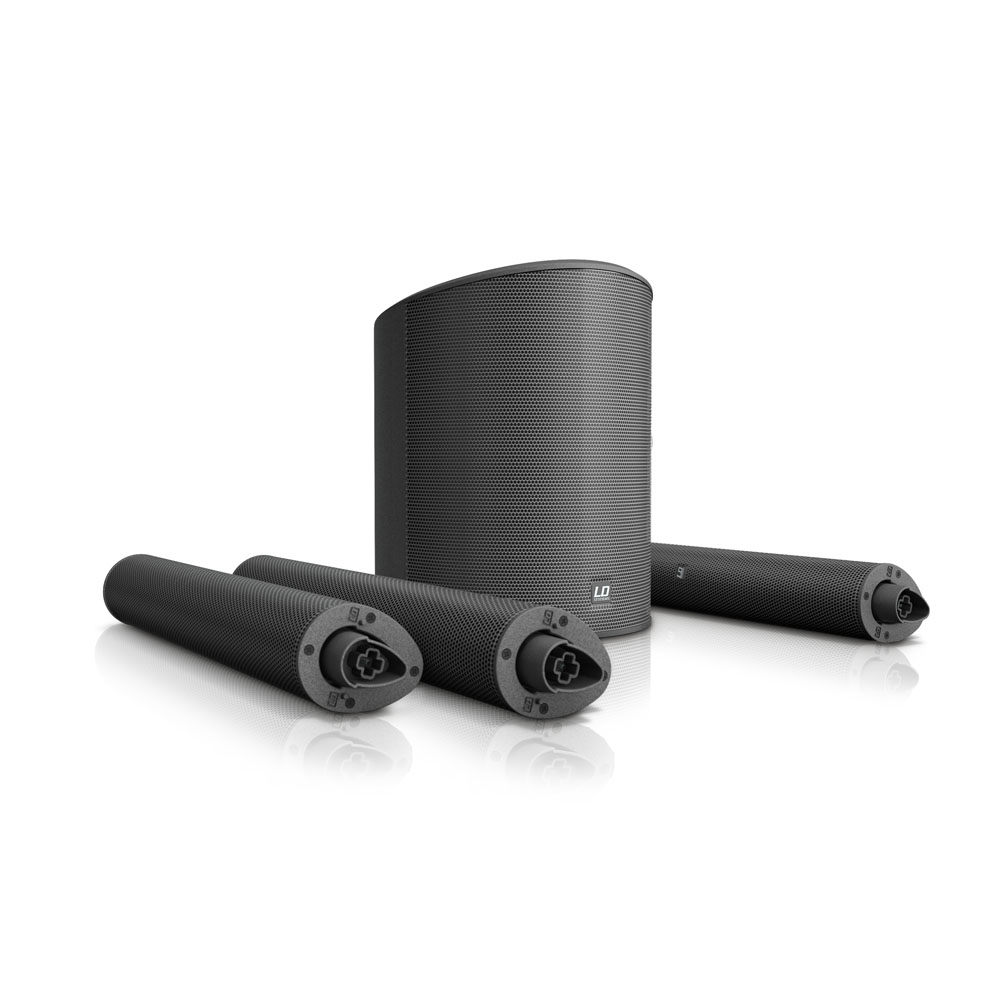

LOA LD SYSTEM MAUI 5

Product number:

LDMAUI5

Product type:

PA Complete Systems

Colour:

black

Max. SPL (continuous):

114dB

Max. SPL (peak):

120dB

Frequency response:

50 - 20000Hz

Dispersion (H x V):

120° x 20°

Overall height:

1985mm

Weight:

11.3kg

Other features:

4 channel mixer, DSP-based signal processing, Bluetooth

Woofer characteristics

Low/mid driver dimensions:

8"

Low/mid driver dimensions (mm):

203.2mm

Woofer magnet:

Ferrite

Woofer brand:

Custom-made

Woofer voice coil:

2"

Woofer voice coil (mm):

50.8mm

Cabinet construction:

vented

Cabinet material:

ABS plastic

Subwoofer width:

305mm

Subwoofer height:

405mm

Depth Subwoofer:

395mm

Mid/Hi System

Midrange size:

4 x 3"

Midrange size:

4 x 76.2mm

Midrange magnet:

Neodymium

Midrange brand:

Custom-made

Midrange voice coil:

1"

Midrange voice coil:

25.4mm

Mid/Hi system impedance:

4Ohm(s)

Loudspeaker inputs:

1

Speaker input connections:

Custom-made multipin

Cabinet construction mid/high:

Closed

Mid/Hi system cabinet material:

ABS plastic

Mid/Hi system width:

82mm

Mid/Hi system height:

535mm

Mid/Hi system depth:

105mm

Amplifier Module (integrated in Subwoofer)

Amplifier:

Class D

Amplifier Output System (RMS):

200W

Amplifier Output System (Peak):

800W

Protection circuits:

thermal overload, DSP-based multiband limiter, short circuit, over-current

Cooling:

Convection

Controls:

BT Pairing, BT level, Mic Level, MP3 / Hi-Z Level, Main Level, sub level, Line Level

Indicators:

limit, on, protect (protection circuit engaged), signal

Operating voltage:

Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz

Line inputs:

2 x stereo

Line input connectors:

6.3 mm Jack, XLR

Mic inputs:

1, XLR, 6.3 mm Jack

MP3 inputs:

1

MP3 input connectors:

3.5 mm jack

Hi-Z inputs:

1

Hi-Z input connectors:

6.3 mm Jack

Loudspeaker outputs:

1

Speaker output connections:

Custom-made multipin

DSP characteristics

Bit depth AD/DA converter:

24 / 24bit

Internal sampling frequency:

48kHz
