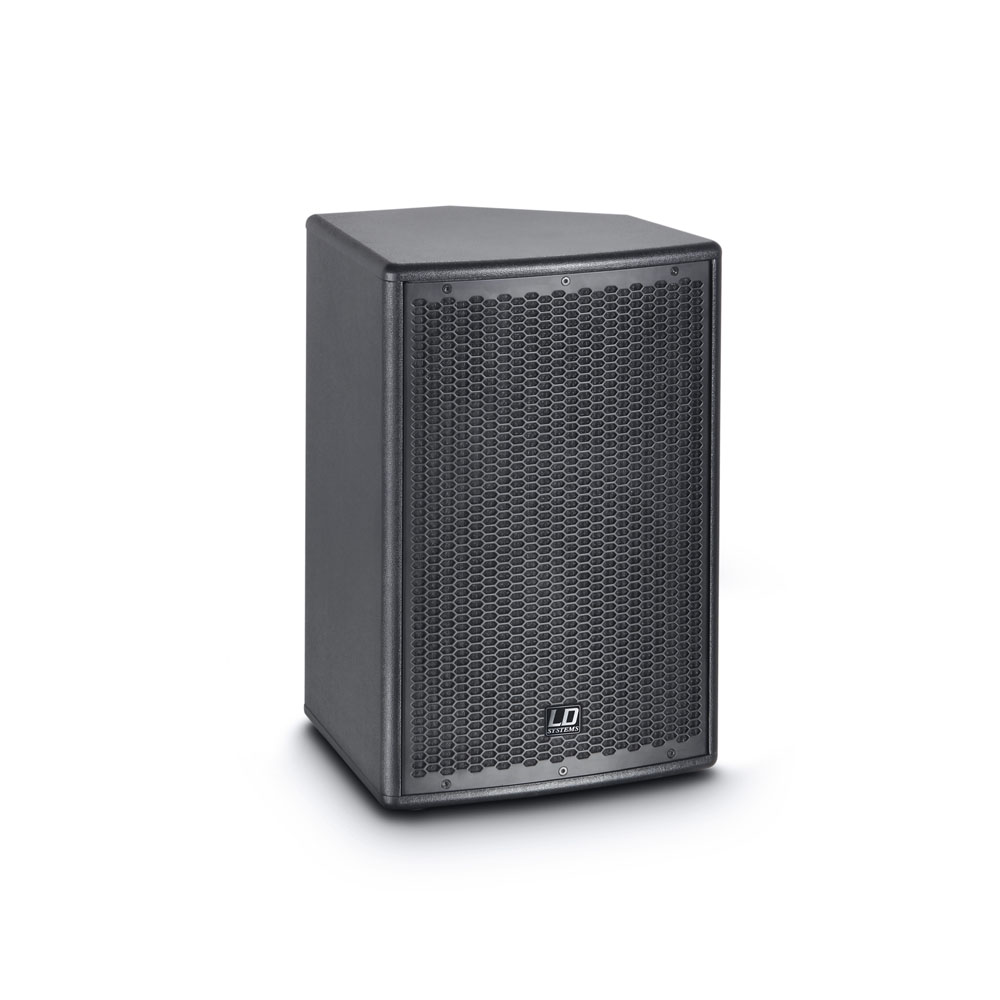

LOA LD SYSTEMS GT 10 A

Product number:

LDGT10A

Product type:

PA loudspeaker

Type:

Actives

Low/mid driver dimensions:

10"

Woofer size:

254mm

Woofer magnet:

Ferrite

Woofer brand:

Custom-made

Woofer voice coil:

2"

Woofer voice coil (mm):

50.8mm

Horn:

CD horn

HF driver dimensions:

1"

HF driver dimensions (mm):

25.4mm

HF driver magnet:

Ferrite

HF driver brand:

Celestion

HF driver voice coil:

1"

HF driver voice coil (mm):

25.4mm

Amplifier:

Class D

Dispersion (H x V):

90 x 60°

RMS:

200W

Peak power:

800W

Frequency response:

65 - 19000Hz

Crossover frequency:

2500Hz

Max. SPL (continuous):

116dB

Max. SPL (peak):

119dB

Protection circuits:

over-current, HF Driver, over voltage

Input sensitivity:

Mic: 150 mV / Line: -10dBu

Controls:

Power, volume, Bass, Treble, Mic Gain, Line Gain

Indicators:

Signal, Protect (protection circuit engaged), Limit, Power

Line inputs:

1

Line input connectors:

6.3 mm jack, XLR

Mic inputs:

1, XLR, 6.3 mm jack

Line outputs:

1

Line output connectors:

XLR

Operating voltage:

Switching power supply, 110 V AC - 120 V AC, 220 V AC - 240 V AC (Auto), 50 - 60 Hz

Cabinet material:

15 mm MDF

Cabinet surface:

Dura-vinyl textured paint

Cabinet construction:

vented

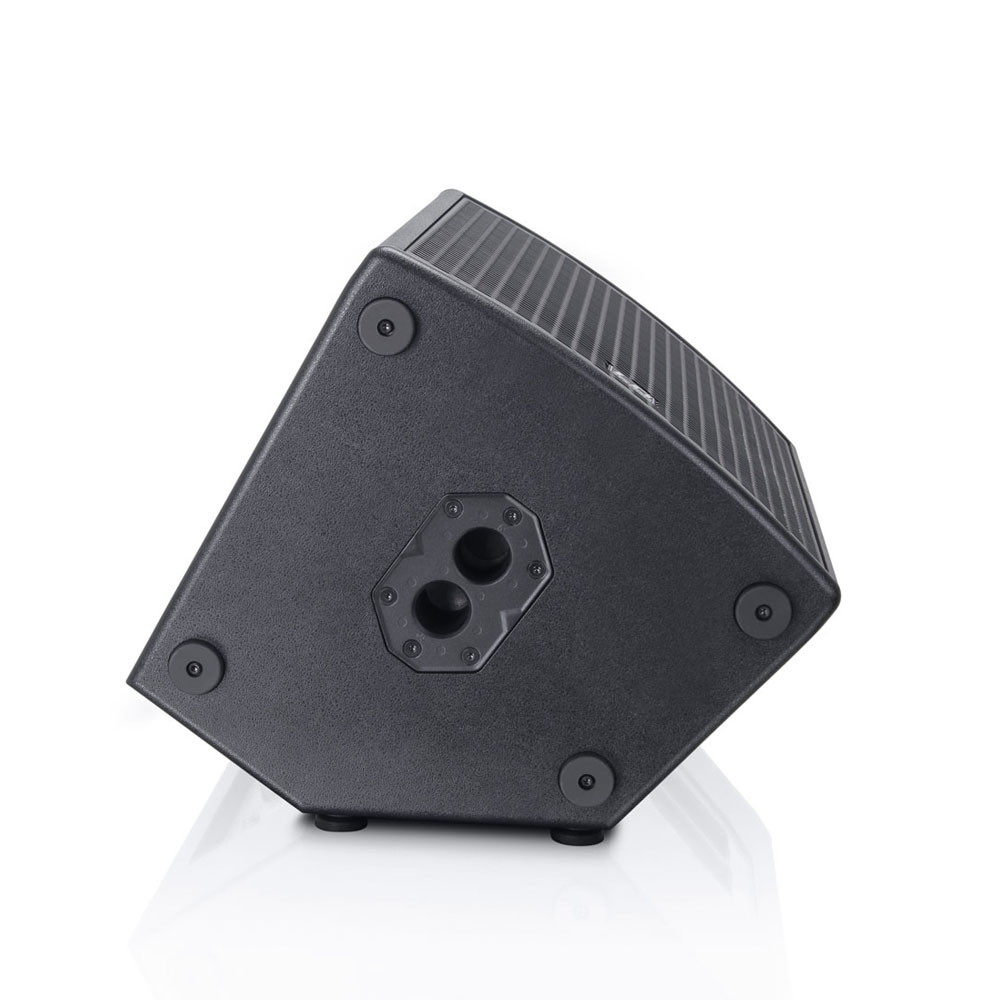

Monitor angle:

54°

Width:

328mm

Height:

500mm

Depth:

293mm

Features:

dual-tilt flange (0°/5°), rugged steel grille

Weight:

13.8kg
