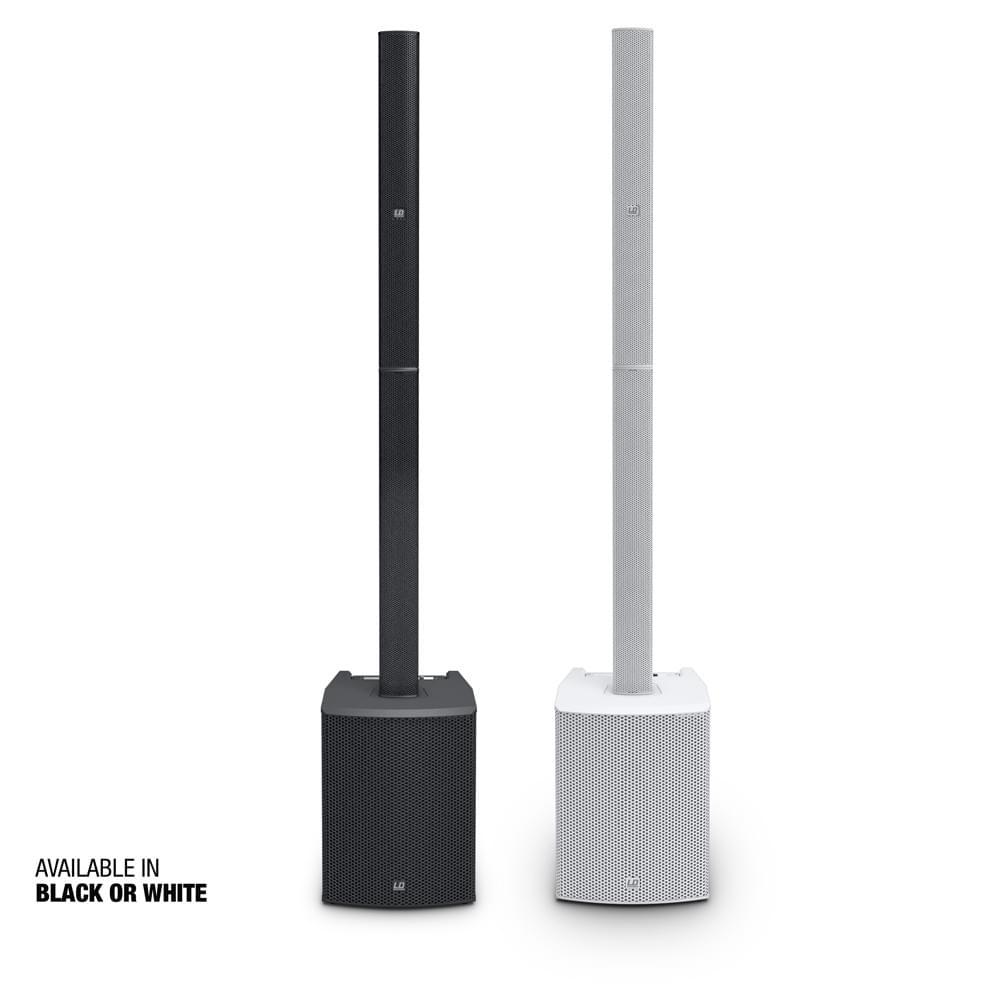

LOA LD SYSTEMS MAUI 28G2

Product number:

LDMAUI28G2

Product type:

PA Complete Systems

Type:

active

Colour:

black

Max. SPL (peak):

126dB

Frequency response:

45 - 20000Hz

Dispersion (H x V):

120° x 20°

Overall height:

2059mm

Weight:

31.2kg

Woofer characteristics

Low/mid driver dimensions:

2 x 8"

Low/mid driver dimensions (mm):

2 x 203mm

Woofer magnet:

Ferrite

Woofer brand:

Custom-made

Woofer voice coil:

2"

Woofer voice coil (mm):

50.8mm

Cabinet construction:

vented

Cabinet material:

15 mm Plywood

Cabinet surface:

texture paint

Subwoofer width:

370mm

Subwoofer height:

484mm

Depth Subwoofer:

480mm

Subwoofer weight:

20.2kg

Mid/Hi System

Midrange size:

16 x 3"

Midrange size:

16 x 76.2mm

Midrange magnet:

Ferrite

Midrange brand:

Custom-made

Midrange voice coil:

1"

Midrange voice coil:

25.4mm

Horn:

Waveguide

Tweeter dimensions:

2 x 1"

Tweeter dimensions (mm):

25.4mm

Tweeter magnet:

Neodymium

Tweeter brand:

Custom-made

Tweeter voice coil:

1"

Tweeter voice coil (mm):

25.4mm

Loudspeaker inputs:

1

Speaker input connections:

Custom-made multipin

Cabinet construction mid/high:

Closed

Mid/Hi system cabinet material:

aluminium

Mid/Hi system cabinet surface:

HD coating

Mid/Hi system width:

96mm

Mid/Hi system height:

780 / 795mm

Mid/Hi system depth:

104mm

Mid/Hi system weight:

5.6 / 5.4kg

Amplifier Module (integrated in Subwoofer)

Amplifier:

Class D

Amplifier Output System (RMS):

1000W

Amplifier Output System (Peak):

2000W

Protection circuits:

thermal overload, short circuit, DC protection, Multiband limiter

Cooling:

Convection

Operating Temperature:

0 - 40°C

Hunidity range:

0% - 80% rel. (non condensing)°C

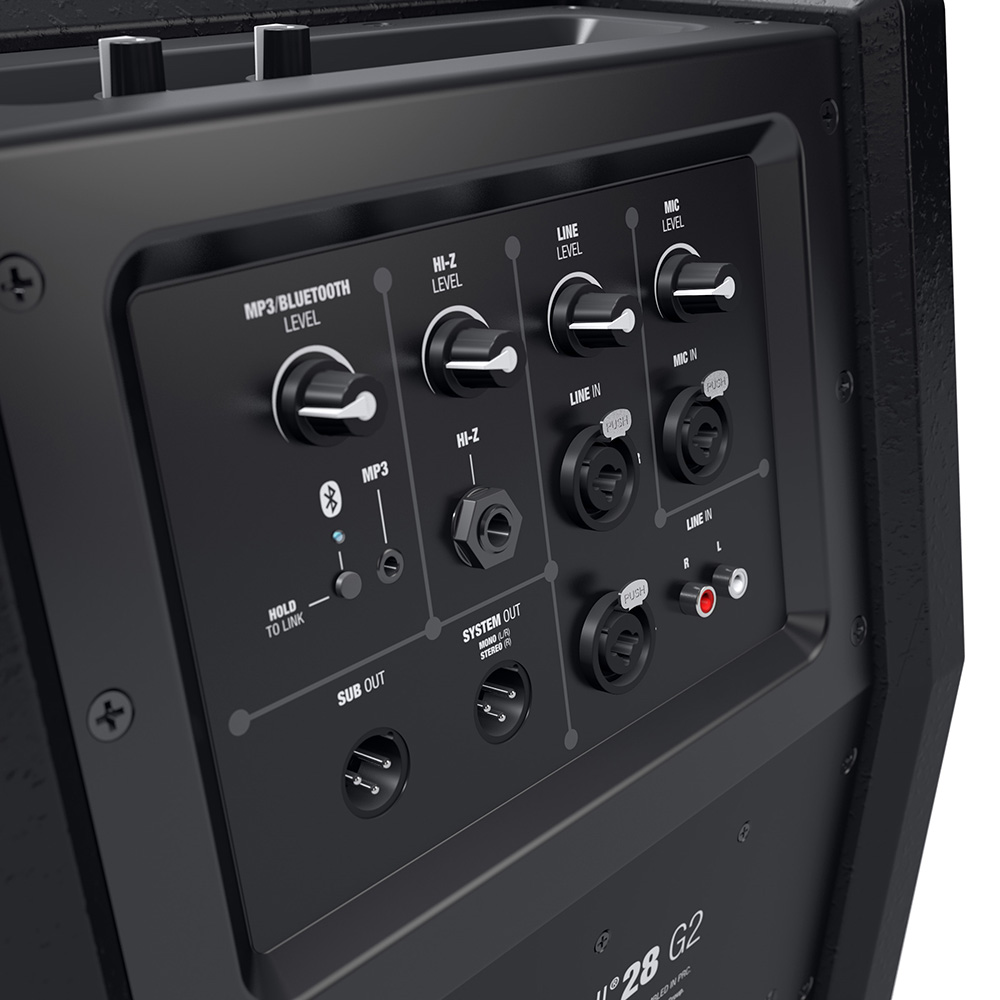

Controls:

Main Level, Line Level, Hi-Z Level, Bluetooth button, sub level, MP3/Bluetooth level, Power, Mono/stereo switch

Indicators:

on, mono, limit, Setup, protect (protection circuit engaged), stereo, signal

Power connector:

IEC (power cable included)

Operating voltage:

100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatic conversion)

Power consumption Off / On / Max.:

0/11/600W

Line inputs:

2 x stereo

Line input connectors:

RCA, XLR/6.3 mm jack

Line outputs:

2 (1x System Out, 1x Sub Out)

Line output connectors:

XLR

Mic inputs:

1, XLR/6.3 mm jack

MP3 inputs:

1

MP3 input connectors:

3.5 mm jack

Hi-Z inputs:

1

Hi-Z input connectors:

6.3 mm Jack

Loudspeaker outputs:

1

Speaker output connections:

Custom-made multipin

DSP characteristics

Bit depth AD/DA converter:

24bit

Internal sampling frequency:

48kHz

Signal/noise ratio:

100dB
