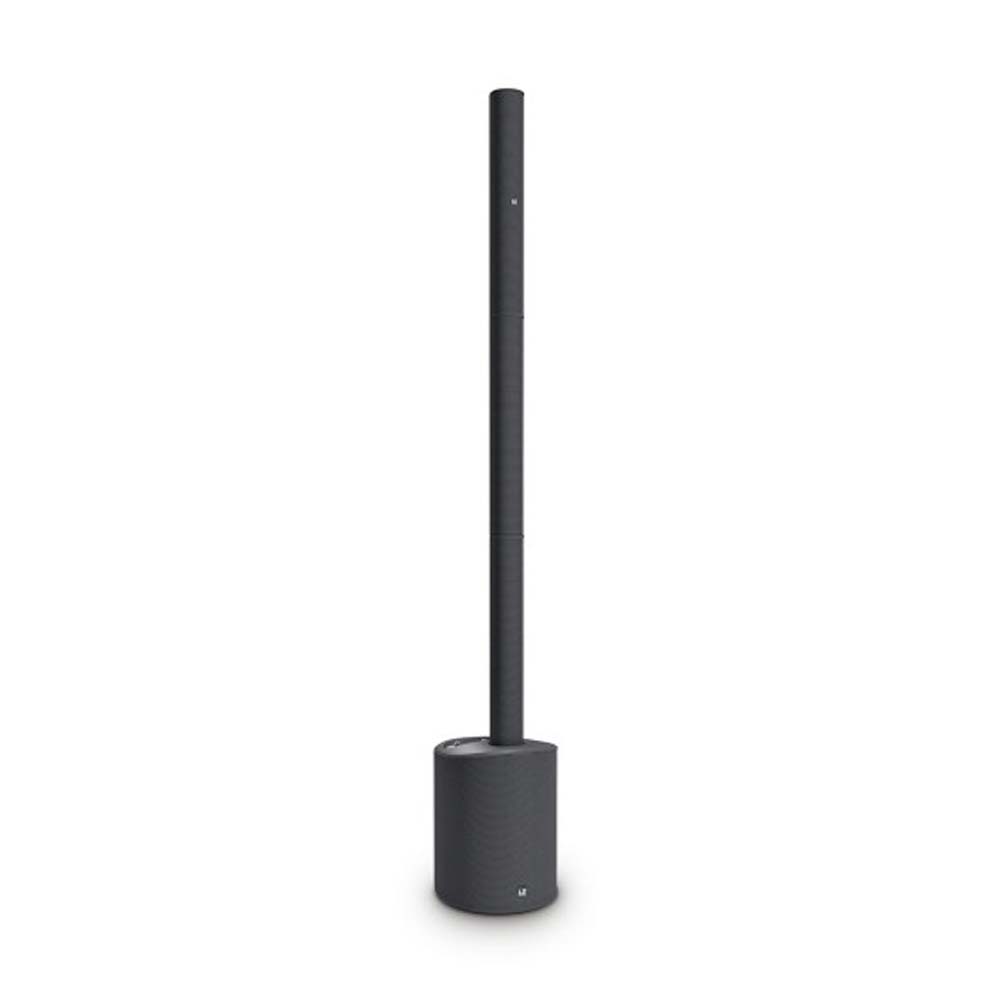

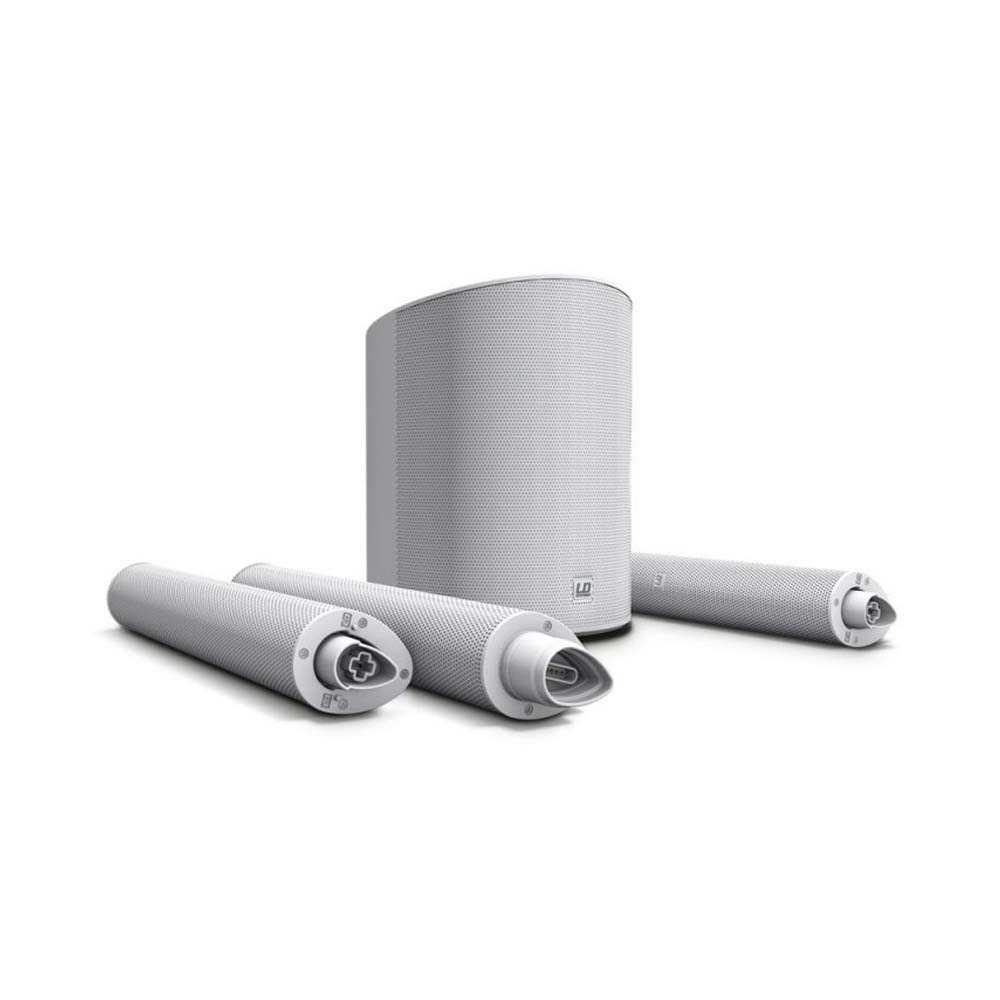

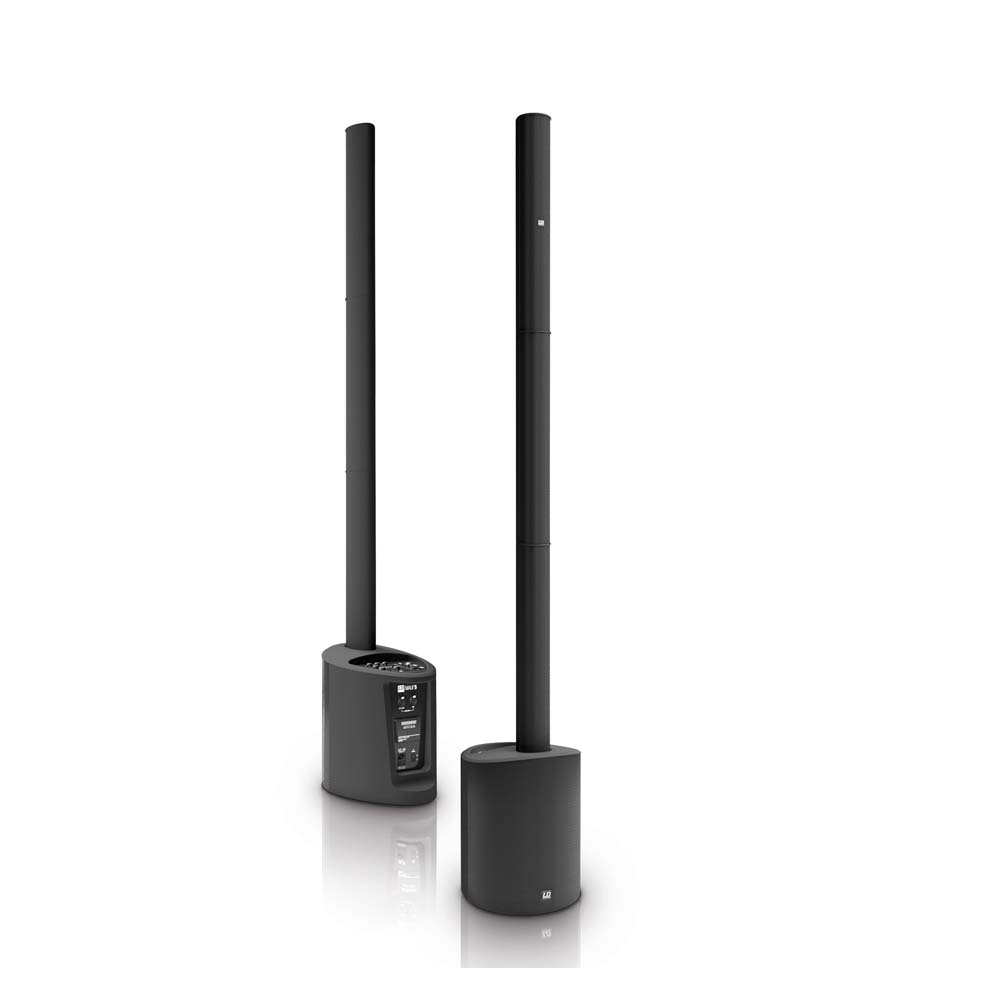

LOA LD SYSTEM MAUI 5go

Product number:

LDMAUI5GOW

Product type:

PA Complete Systems

Type:

active

Number of subwoofers:

1

Colour:

white

Max. SPL (peak):

120dB

Frequency response:

50 - 20000Hz

Dispersion (H x V):

120° x 20°

Overall height:

1985mm

Weight:

12.3kg

Rechargeable batteries:

28.8 V / 5200 mAh

Battery manufacturer:

LG Chem

Battery technology:

Lithium-ion

Battery operation time at maximum load:

10 h @ 104 dB (Live music), 30 h @ 98 dB (Lounge mode), 6 h @ 120 dB (DJ mode)

Charging time:

2 hours up to 80%, 3 hours up to 100%

Woofer characteristics

Low/mid driver dimensions:

8"

Woofer size:

203.2mm

Woofer magnet:

Ferrite

Woofer brand:

Custom-made

Woofer voice coil:

2"

Woofer voice coil (mm):

50.8mm

Cabinet construction:

vented

Cabinet material:

ABS plastic

Subwoofer width:

305mm

Subwoofer height:

405mm

Subwoofer depth:

395mm

Subwoofer weight:

8.5kg

Mid/Hi System

Midrange size:

4 x 3"

Midrange size:

4 x 76.2mm

Midrange magnet:

Ferrite

Midrange brand:

Custom-made

Midrange voice coil:

1"

Midrange voice coil:

25.4mm

Mid/Hi system impedance:

4Ohm(s)

Loudspeaker inputs:

1

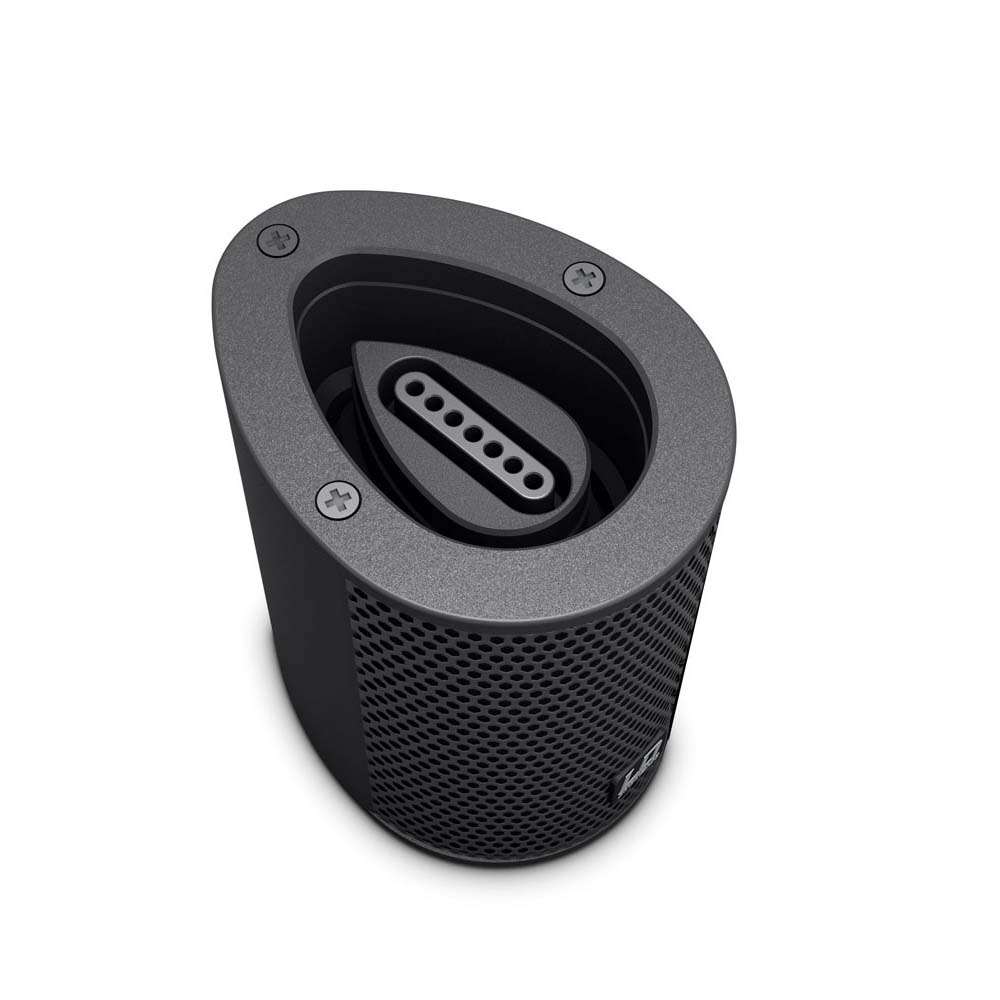

Speaker input connections:

Custom-made multipin

Cabinet construction mid/high:

Closed

Mid/Hi system cabinet material:

ABS plastic

Mid/Hi system width:

82mm

Mid/Hi system height:

535mm

Mid/Hi system depth:

103mm

Mid/Hi system weight:

3.8kg

Amplifier module (integrated in subwoofer)

Amplifier:

Class D

Amplifier output system (RMS):

200W

Amplifier output system (peak):

800W

Protection circuits:

thermal overload, over-current, DSP-based multiband limiter, short circuit

Cooling:

Convection

Controls:

BT pairing, Mono/stereo mode, MP3 / Hi-Z level, Main level, On / Off, Line level, Sub level, Mic level, BT level

Indicators:

On, Limit, Signal, Protect (protection circuit engaged)

Operating voltage:

Switching power supply, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz

Line inputs:

2 x stereo

Line input connectors:

XLR, 6.3 mm jack

Mic inputs:

1, 6.3 mm jack, XLR

MP3 inputs:

1

MP3 input connectors:

3.5 mm jack

Hi-Z inputs:

1

Hi-Z input connectors:

6.3 mm jack

Loudspeaker outputs:

1

Speaker output connections:

Custom-made multipin

DSP characteristics

Bit depth AD/DA converter:

24 / 24bit

Internal sampling frequency:

48kHz
